WiringPRO

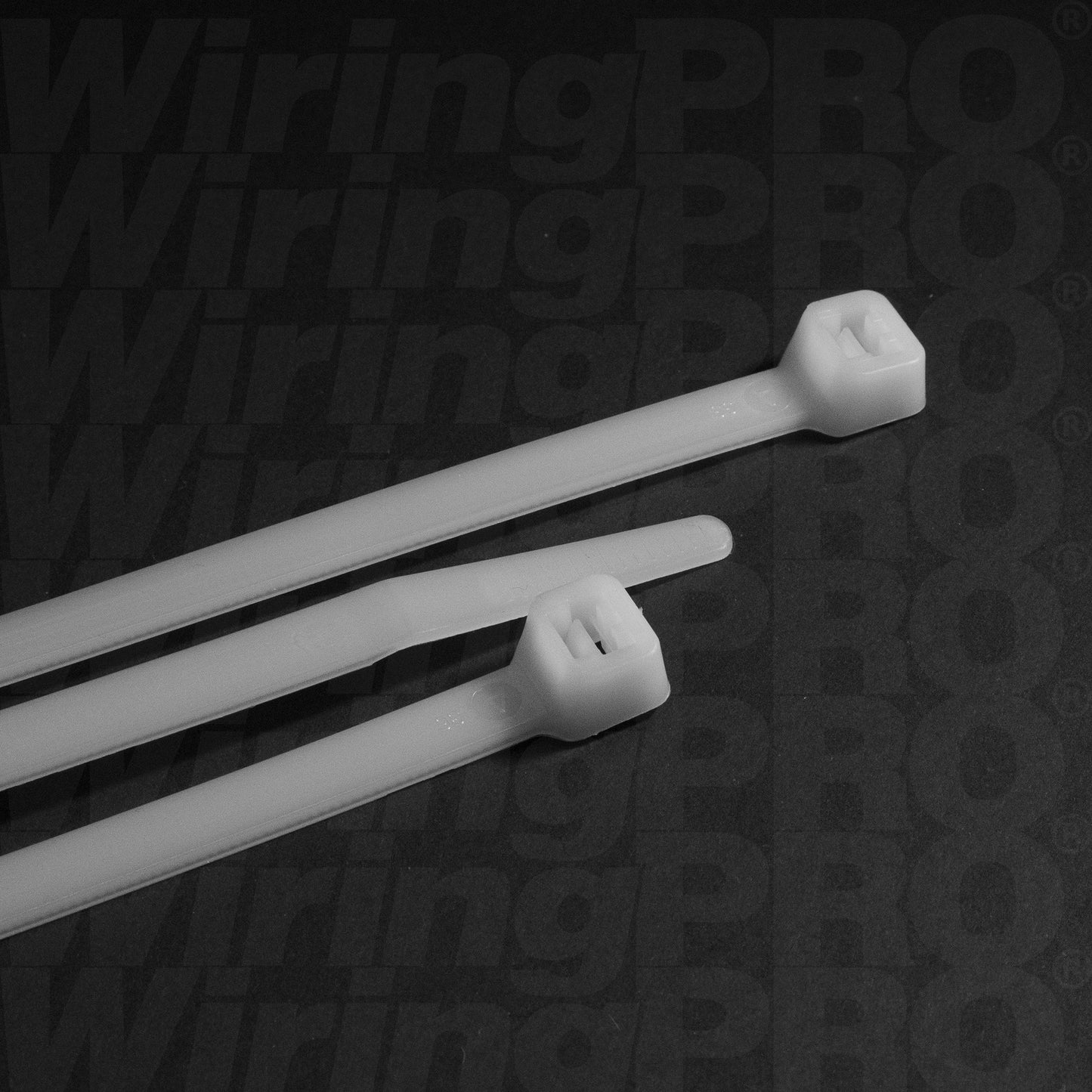

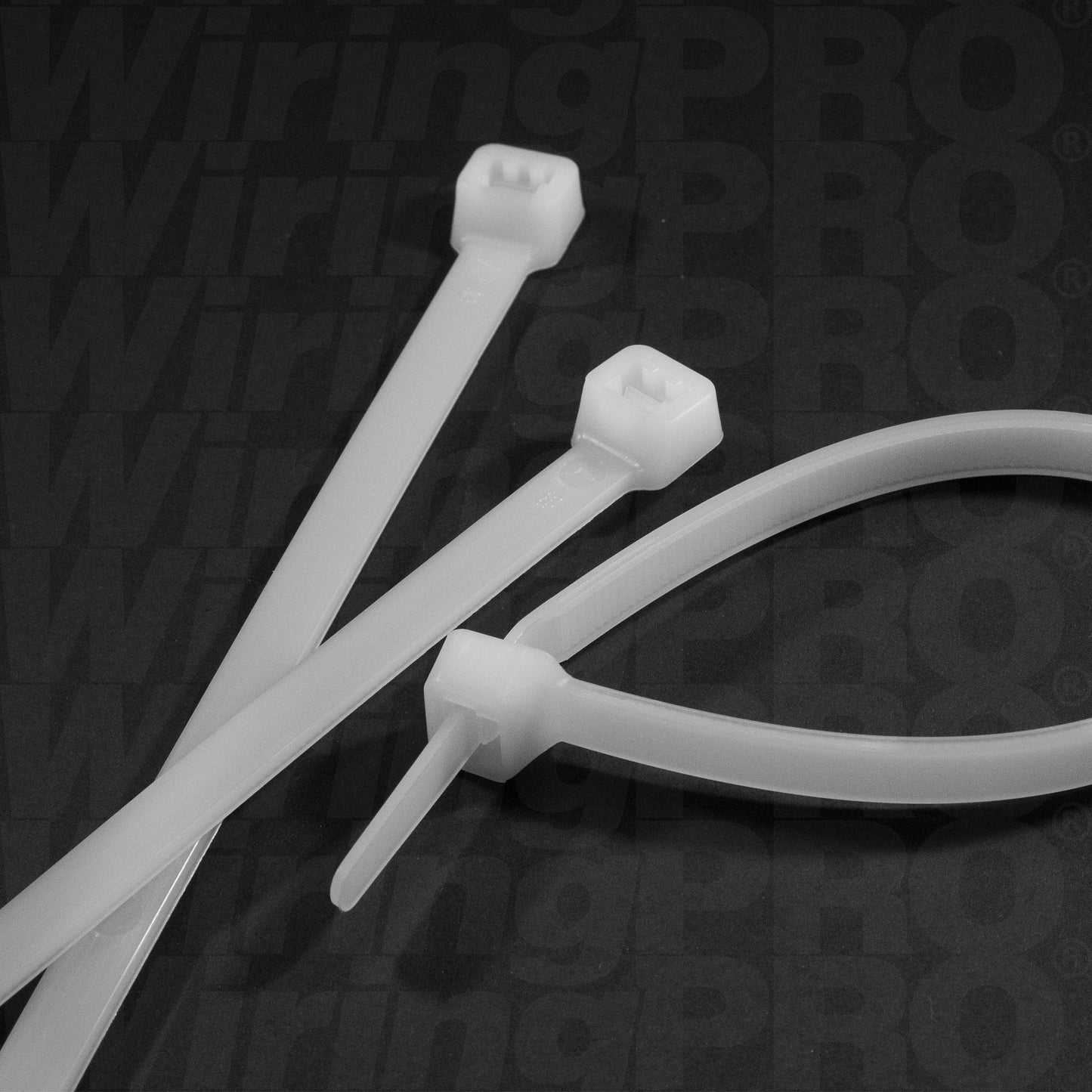

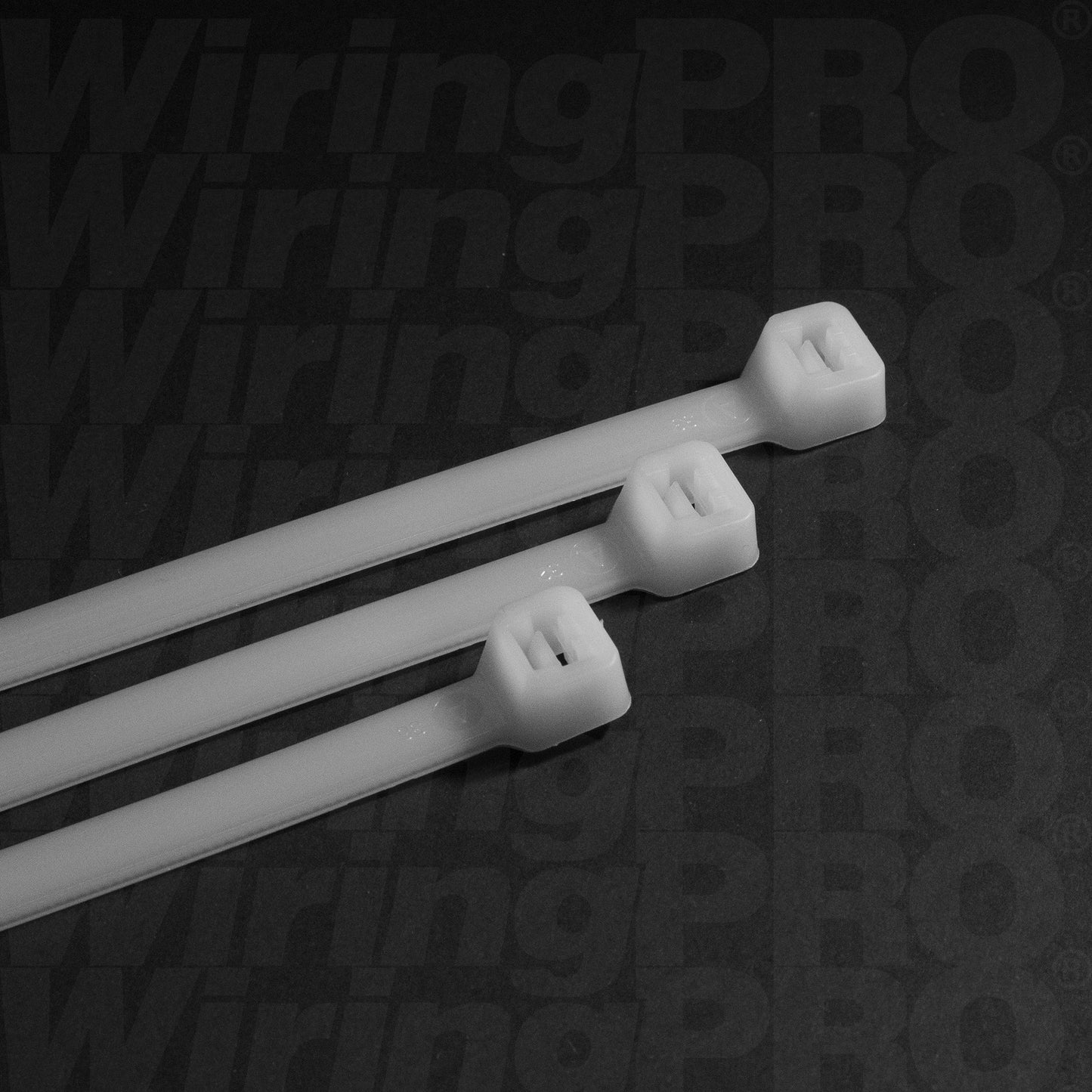

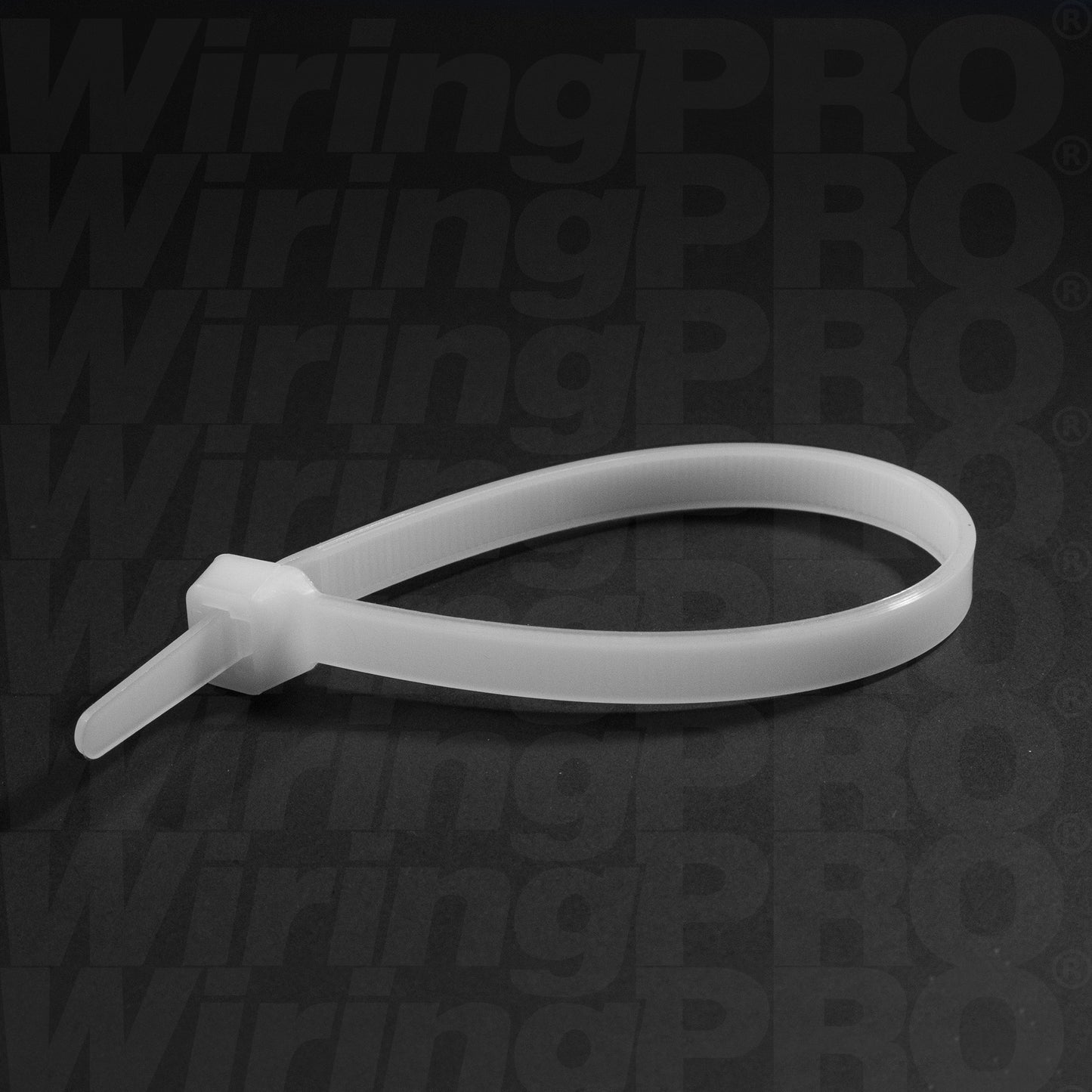

120 lb Tensile Strength - Natural Nylon

How to Order

Currently the site is still going through a transition phase. If you want to proceed with an order, create a distribution account through email or phone.

Size
Package Quantity

8.7" SPECS

Country of Origin: USA
WiringPRO Finished Good #:
CT08120HD-0-L

Tensile STR: 120 LB (54.40 KG)
Length: 8.70" (22.10 CM)
Width: 0.30" (0.76 CM)
Thickness: 0.07” (0.17 CM)
Min/Max Bundle DIA:
0.19"/2.06" (0.48 CM/5.23 CM)
Min/Max Operating Temp:
-40°F/185°F (-40°C/85°C)
Min Installation Temp:
-4°F (-20°C)
UL Listed:
E221887 UL Listed Type 21S Support
UL Air Handling Approved:
UL AH-2 Plenum Rated
UL Flame Rating: 94V-2
CSA Certified:
AP66159 CSA Certified Type 21S Support
CE Compliance: Type 2
RoHS Compliant: RoHS Compliant
Weight Per Bag:
0.45 LBS

WiringPRO prides itself in providing O.E.M. quality made products that meet and/or exceed O.E.M.’s stringent engineering specifications. Our products are CSA and UL Approved (where applicable) and service the following markets:

> AUTOMOTIVE
> ELECTRICAL
> HVAC
> INDUSTRIAL
> MARINE
